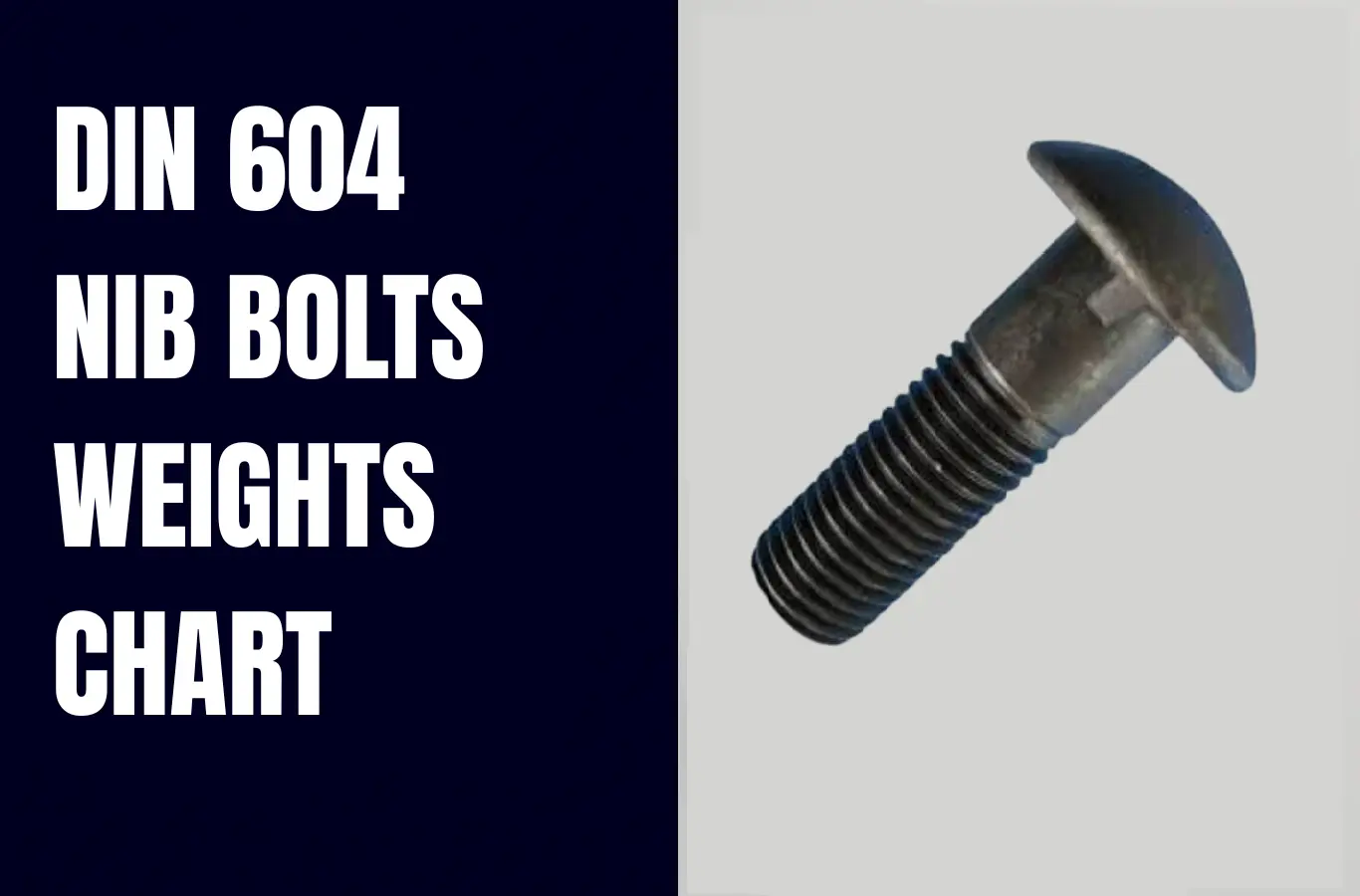

DIN 604 Nib Bolts Weights Chart
Dia length |
M 6 |
M 8 |
M 10 |
M 12 |
M 16 |
M 20 |
M 24 |
| 20 |
4.9 |
9.5 |
14.9 |
| – |
– |
– |
| 25 |
5.9 |
11.1 |
17.4 |
27.70 |
– |
– |
– |
| 30 |
7.0 |
12.7 |
19.9 |
31.40 |
61.80 |
– |
– |
| 35 |
8.1 |
14.7 |
22.4 |
35.10 |
69.20 |
– |
– |
| 40 |
9.2 |
16.7 |
25.5 |
38.80 |
76.20 |
– |
– |
| 45 |
10.3 |
18.7 |
28.6 |
43.20 |
83.20 |
|
– |
| 50 |
11.4 |
20.7 |
31.7 |
47.60 |
90.20 |
128.00 |
– |
| 55 |
12.5 |
22.7 |
34.8 |
52.00 |
97.20 |
139.00 |
– |
| 60 |
13.6 |
24.7 |
37.9 |
56.40 |
105.00 |
150.00 |
225.00 |
| 65 |
14.7 |
26.7 |
41.0 |
60.80 |
113.00 |
161.00 |
241.00 |
| 70 |
15.8 |
28.7 |
44.1 |
65.20 |
121.00 |
173.00 |
257.00 |
| 80 |
17.9 |
32.7 |
50.3 |
73.80 |
137.00 |
197.00 |
291.00 |
| 90 |
20.1 |
36.7 |
56.5 |
84.10 |
153.00 |
221.00 |
327.00 |
| 100 |
22.3 |
40.7 |
62.7 |
93.10 |
169.00 |
245.00 |
363.00 |
| 110 |
– |
44.7 |
68.9 |
102.00 |
185.00 |
269.00 |
399.00 |
| 120 |
– |
48.7 |
75.1 |
111.00 |
201.00 |
293.00 |
435.00 |
| 130 |
– |
52.7 |
81.3 |
120.00 |
217.00 |
318.00 |
471.00 |
| 140 |
– |
56.7 |
87.5 |
129.00 |
233.00 |
340.00 |
507.00 |
| 150 |
– |
60.7 |
94.0 |
138.00 |
249.00 |
364.00 |
543.00 |
| 160 |
– |
– |
100 |
147.00 |
265.00 |
388.00 |
579.00 |
