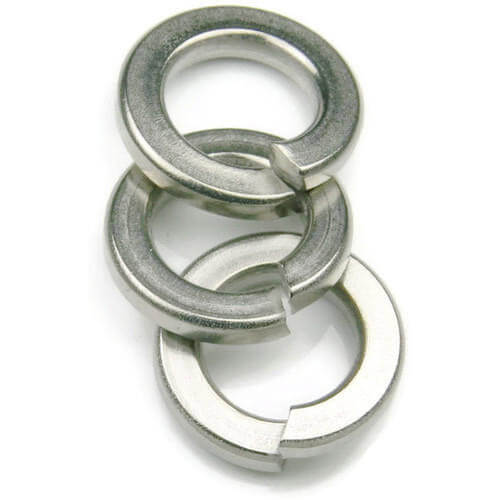

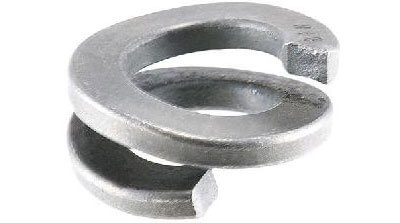

Spring Lock Washer

A spring lock washer is a mechanical component designed to prevent the loosening of fasteners due to vibrations or dynamic loads. Its helical shape allows it to exert a continuous force against the fastener, maintaining tension and ensuring a secure connection. Commonly used in automotive, aerospace, and industrial applications, spring lock washers are essential for maintaining the integrity of bolted joints. They are typically made from high-carbon steel or stainless steel to provide durability and resistance to corrosion. Available in various sizes and grades, spring lock washers are compatible with a wide range of bolts and nuts, offering versatility in fastening solutions. Their design and material properties make them a reliable choice for preventing fastener loosening in critical applications.

Size Range
Diameter Metric: M8 to M30
Inch: 0.3 ” to 1.2 "
Length ----
Technical Specifications

Nom. Sized2d1m
88.114.82
1010.218.12.2
1212.221.12.5
1616.227.43.5
2020.233.64
2424.5405
3030.548.26


Tensile StrengthSize RangeEquivalent Standards
Property ClassDiameterLength
PSIN/mm2GradeMetricInchMetricInchISISODINBSANSIJIS
---M8 to M300.3 ” to 1.2 "--3063-127---


Understanding Spring Lock Washers

spring lock washer is a mechanical component designed to prevent the loosening of fasteners due to vibrations or dynamic loads. Its helical shape allows it to exert a continuous force against the fastener, maintaining tension and ensuring a secure connection. Commonly used in automotive, aerospace, and industrial applications, spring lock washers are essential for maintaining the integrity of bolted joints. They are typically made from high-carbon steel or stainless steel to provide durability and resistance to corrosion. Available in various sizes and grades, spring lock washers are compatible with a wide range of bolts and nuts, offering versatility in fastening solutions. Their design and material properties make them a reliable choice for preventing fastener loosening in critical applications.


Applications of Spring Lock Washers


Spring lock washers are widely used in various industries, including automotive, aerospace, and industrial machinery. In automotive applications, they are used to secure engine components, suspension systems, and exhaust systems, ensuring that critical parts remain securely fastened under dynamic conditions. In aerospace, spring lock washers are employed to maintain the integrity of fastened joints in aircraft structures and systems, where safety and reliability are paramount. Industrial machinery also benefits from the use of spring lock washers to prevent loosening of fasteners in equipment subjected to vibrations and mechanical stresses.


Advantages of Spring Lock Washers


The primary advantage of spring lock washers is their ability to prevent the loosening of fasteners due to vibrations or dynamic loads. Their helical design allows them to exert a continuous force against the fastener, maintaining tension and ensuring a secure connection. This is particularly important in applications where fastener loosening can lead to equipment failure or safety hazards. Additionally, spring lock washers are available in various sizes and grades, providing versatility to meet specific application requirements. Their durability and resistance to corrosion make them suitable for use in harsh environments.


Materials Used for Spring Lock Washers


Spring lock washers are typically made from high-carbon steel or stainless steel. High-carbon steel offers strength and durability, making it suitable for general-purpose applications. Stainless steel provides enhanced corrosion resistance, making it ideal for use in environments exposed to moisture or corrosive substances. The choice of material depends on the specific requirements of the application, including environmental conditions and load-bearing capacity.


Installation and Maintenance


Installing a spring lock washer is a straightforward process. To install, place the washer under the fastener, ensuring that the helical design is oriented correctly to exert force against the fastener. Tighten the fastener to the specified torque to ensure a secure connection. While spring lock washers require minimal maintenance, it is important to check for signs of wear, rust, or corrosion over time. If necessary, replace the washer or the fastener to maintain the integrity of the connection and prevent loosening.


Spring Lock Washer Variations and Sizes


Spring lock washers come in a range of sizes, typically corresponding to the standard nut sizes they are used with. They are available in various thread pitches and diameters to suit different applications. Some spring lock washers feature a thin profile, while others are thicker, providing additional locking strength for heavy-duty applications. It is important to select the correct spring lock washer size to ensure compatibility with the bolt and the overall fastening system.
