Bolt Grade Markings and Strength Chart
|
Bolt Grade Markings & Strength Chart - Metric Steel Bolts
|

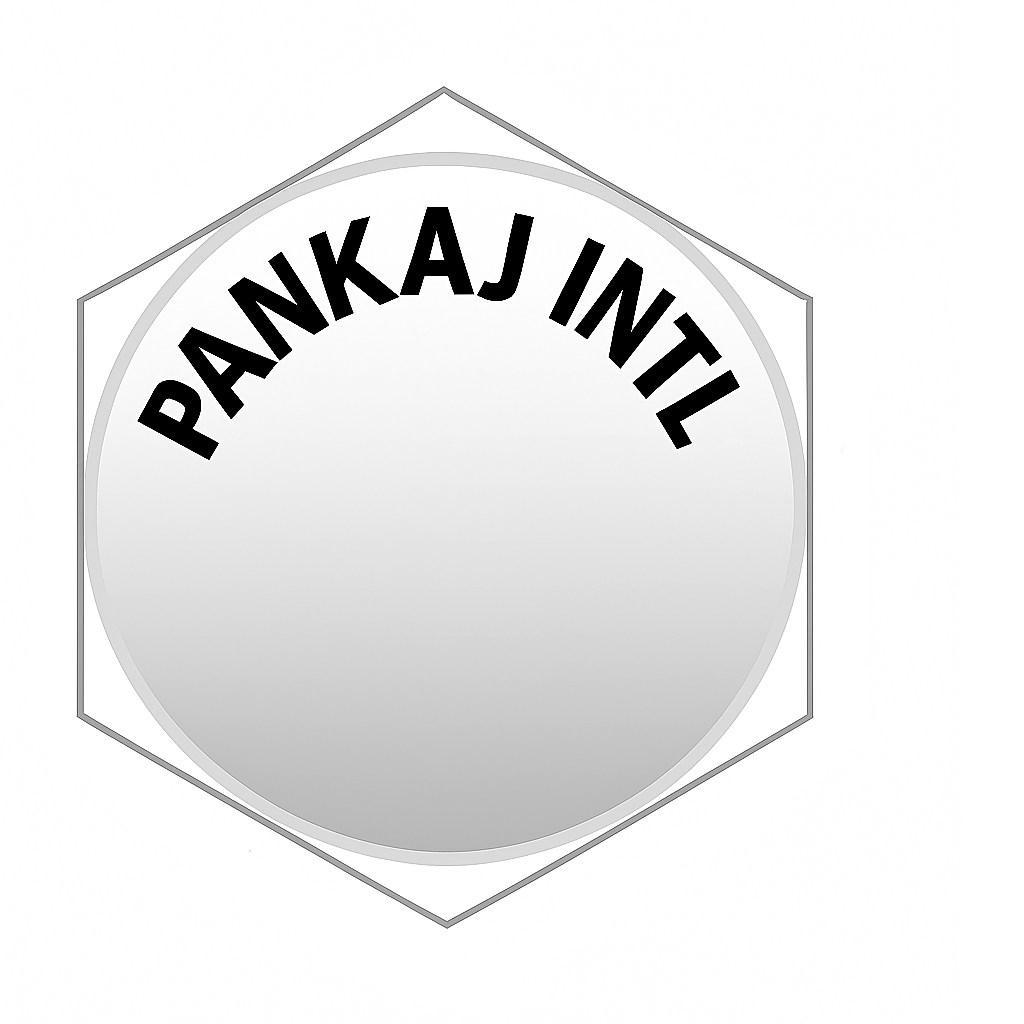

| Head Marking |
Grade/Specification |
Material |
Proof Load (MPa) |
Tensile Strength min (MPa) |
Yield Strength Min (MPa) |
Hardness Min/Max |
 |

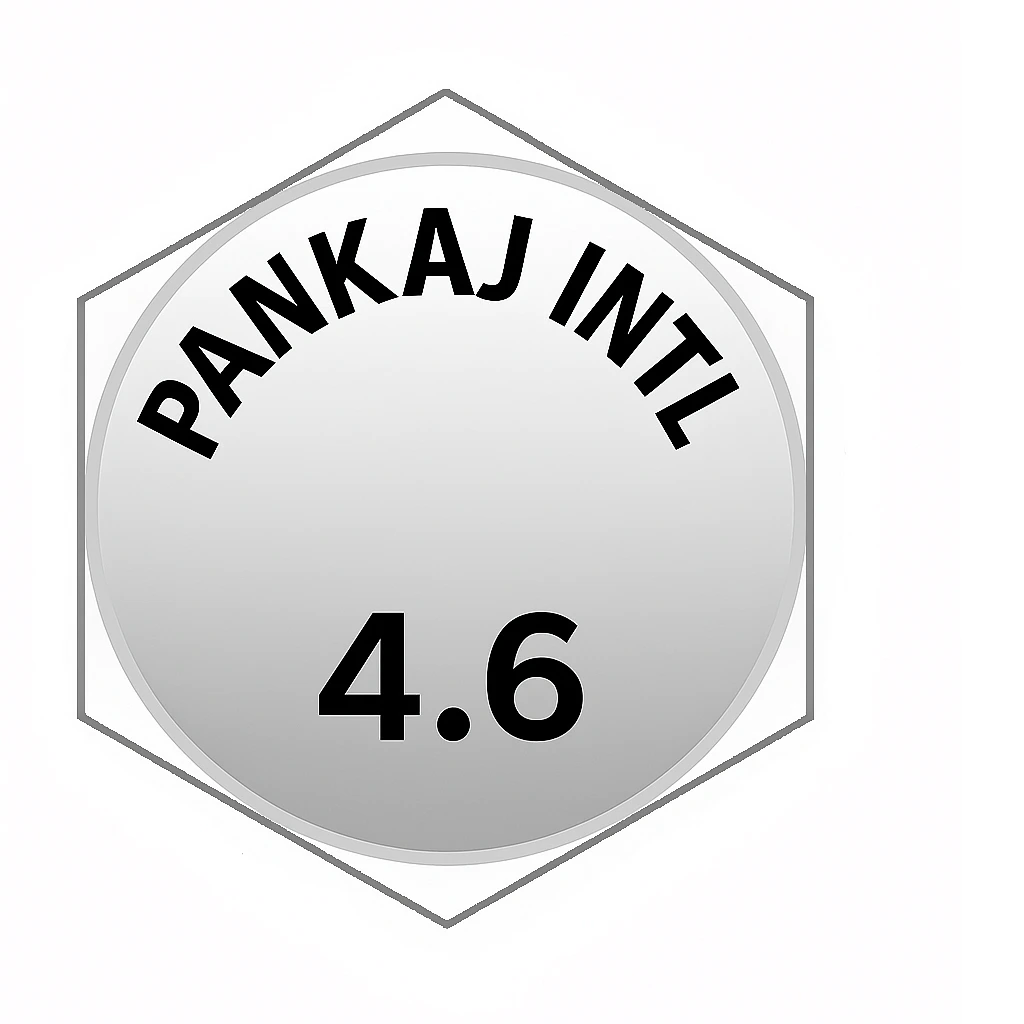

Class 4.6 |
Low or medium carbon steel |
220 |
400 (58,000 psi) |
240 |
HRB-67 / HRB-95 |
 |

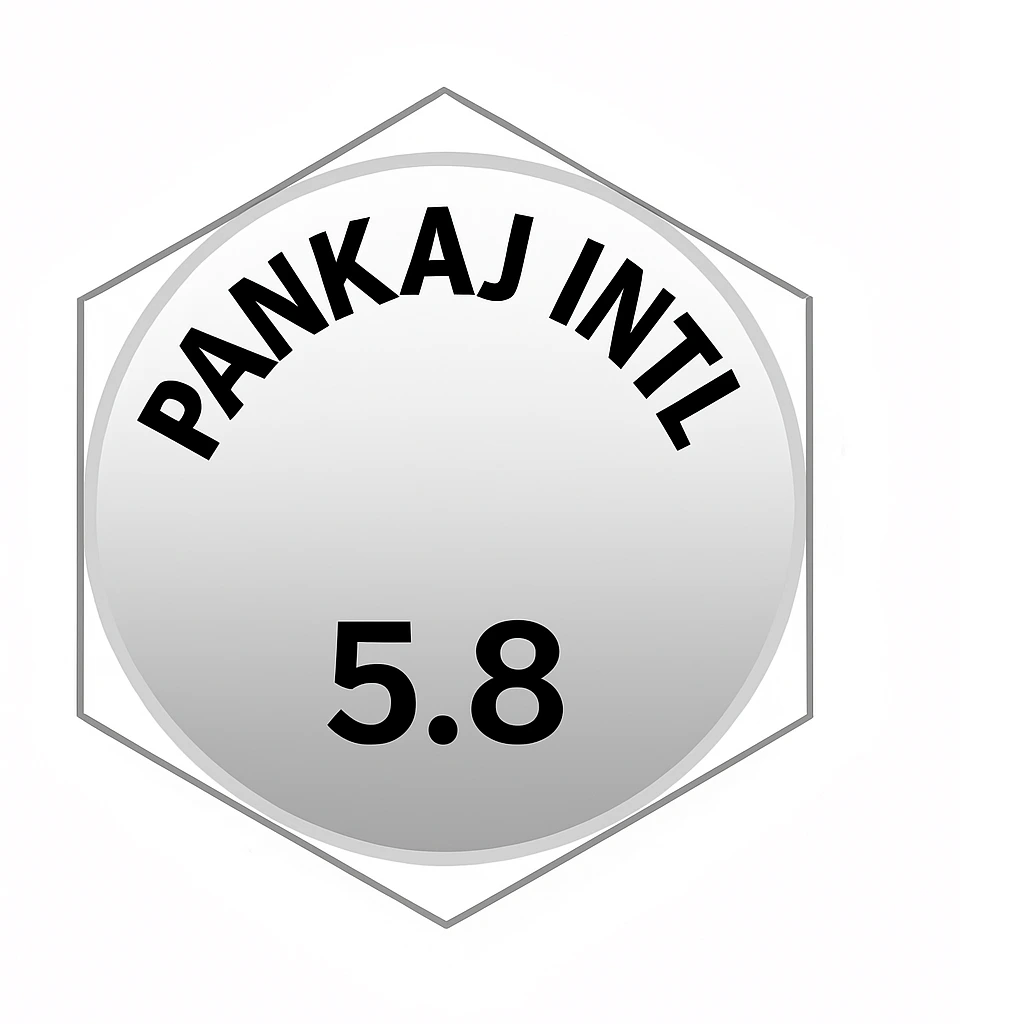

Class 5.8 |
Low or medium carbon steel, quenched and tempered |
380 |
520 (75,000 psi) |
420 |
HRB-82 / HRB-95 |
 |

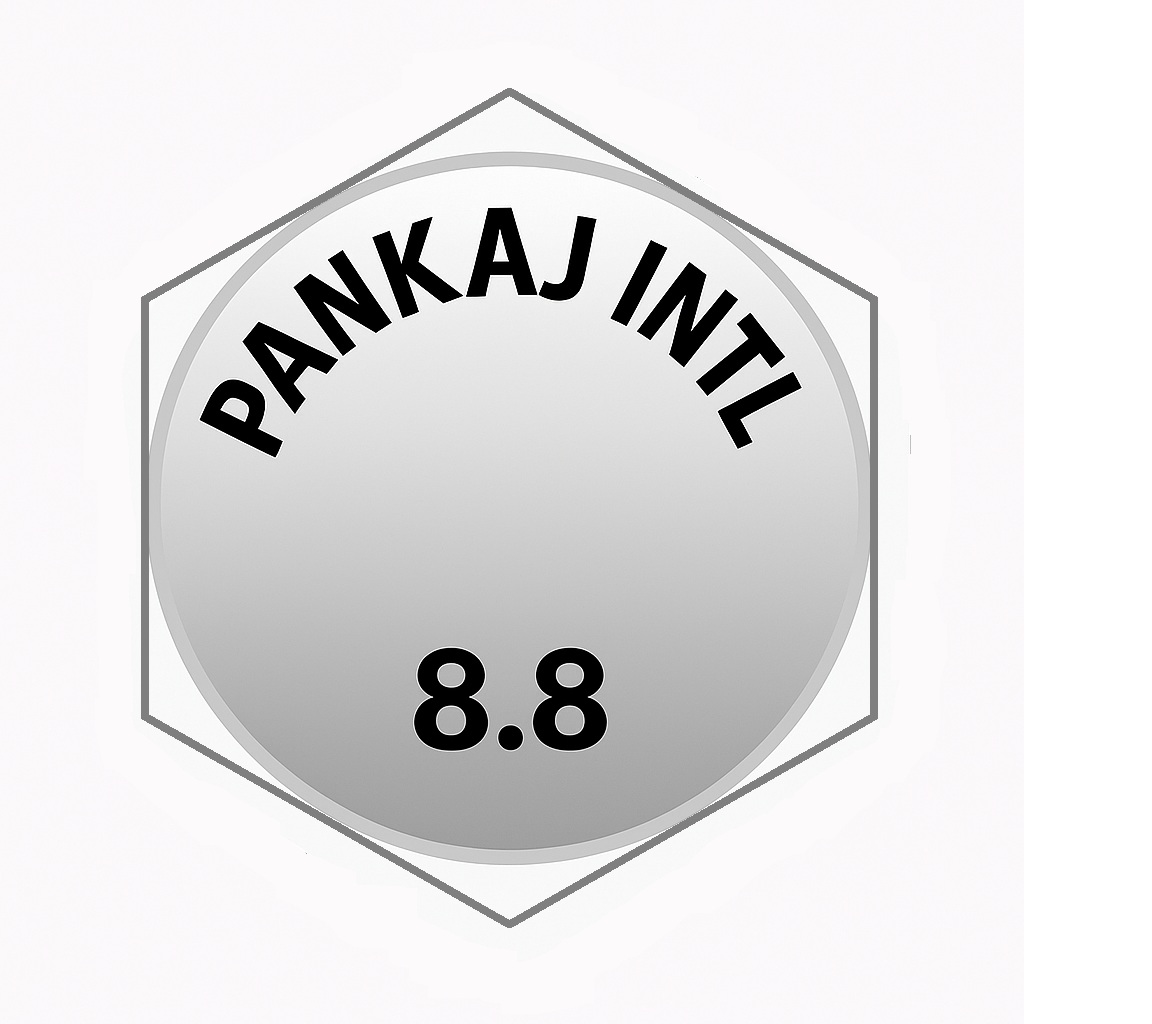

Class 8.8 |
Medium carbon steel, quenched and tempered |
600 |
830 (120,000 psi) |
640 |
HRC-22 / HRC-34 |
 |

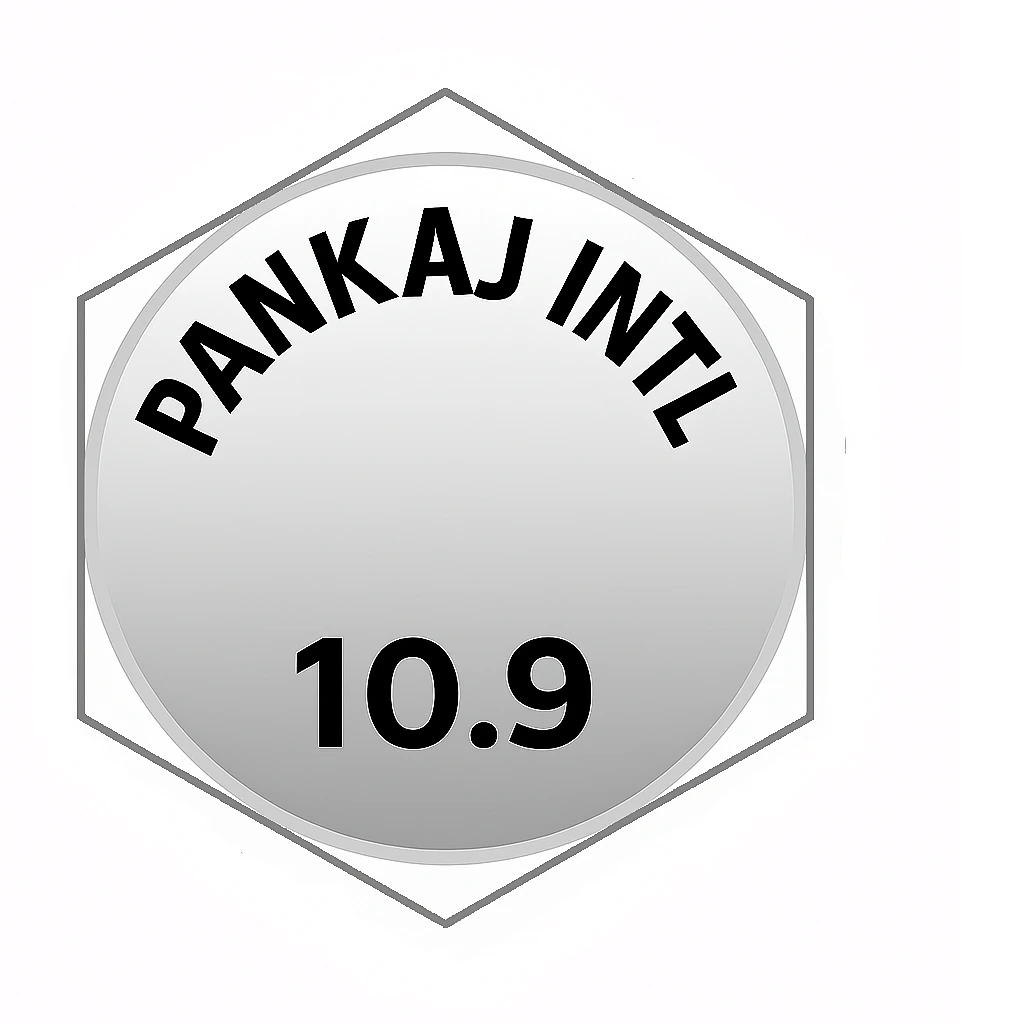

Class 10.9 |
Alloy steel, quenched and tempered |
830 |
1040 (150,000 psi) |
940 |
HRC-32 / HRC-39 |
 |
Class 12.9 |
Alloy steel, quenched and tempered |
970 |
1220 (176,000 psi) |
1220 |
HRC-39 / HRC-44 |
| Usually stamped A-2 or A-4 |
A2 & A4 Stainless |
Steel alloy with chromium and nickel |
N/A |
500 Min
700 Typical |
210 Min
450 Typical |
|
|
Note: Manufacturer's identification mark are also stamped when applicable.
|
|
Bolt Grade Markings & Strength Chart - Inch Steel Bolts
|
| Head Marking |
Grade / Specification |
Material | Size (Inch)
|
Proof Load (psi) |
Tensile Strength Min (psi) |
Yield Strength Min (psi) |
Rockwell Hardness |
 |
Grade 1 - SAE J429
Bolts, Screws and Studs |
Low/Medium Carbon Steel |
1/4" - 1-1/2" |
33,000 |
60,000 |
36,000 |
B 70 / B 100 |
|
Grade 2 - SAE J429
Bolts, Screws and Studs |
Low/Medium Carbon Steel |
1/4" - 3/4"
>3/4" - 1-1/2" |
55,000
33,000 |
74,000
60,000 |
57,000
36,000 |
B 80 / B 100
B 70 / B 100 |
 |

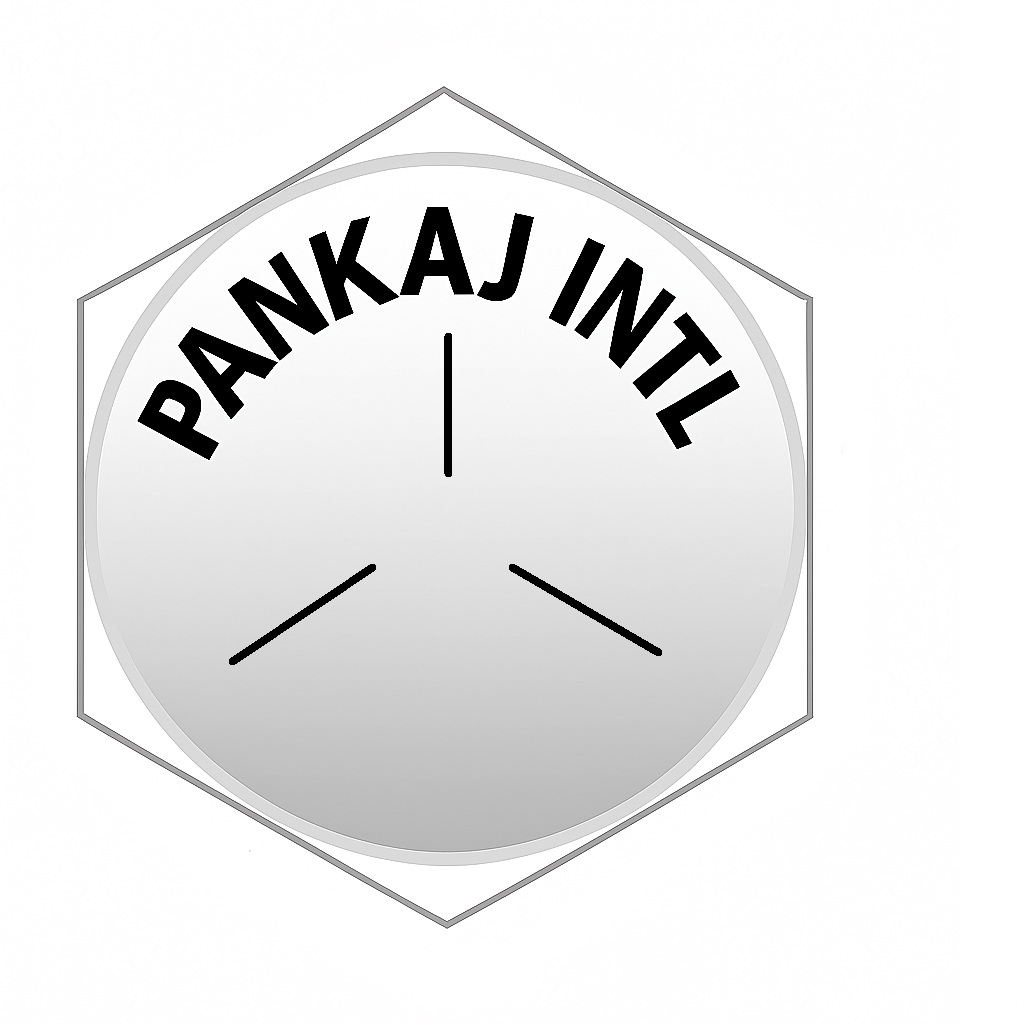

Grade 5 - SAE J429
Bolts, Screws and Studs |
Medium Carbon Steel, Quenched & Tempered |
1/4" - 1"
>1" - 1-1/2" |
85,000
74,000 |
120,000
105,000 |
92,000
81,000 |
C 25 / C 34
C 19 / C 30 |
 |
Grade 5.1 - SAE J429
Sems |
Low or medium carbon steel, quenched and tempered | No. 4 - 5/8" | 85,000 | 120,000 | 92,000 | C25 / C40 |

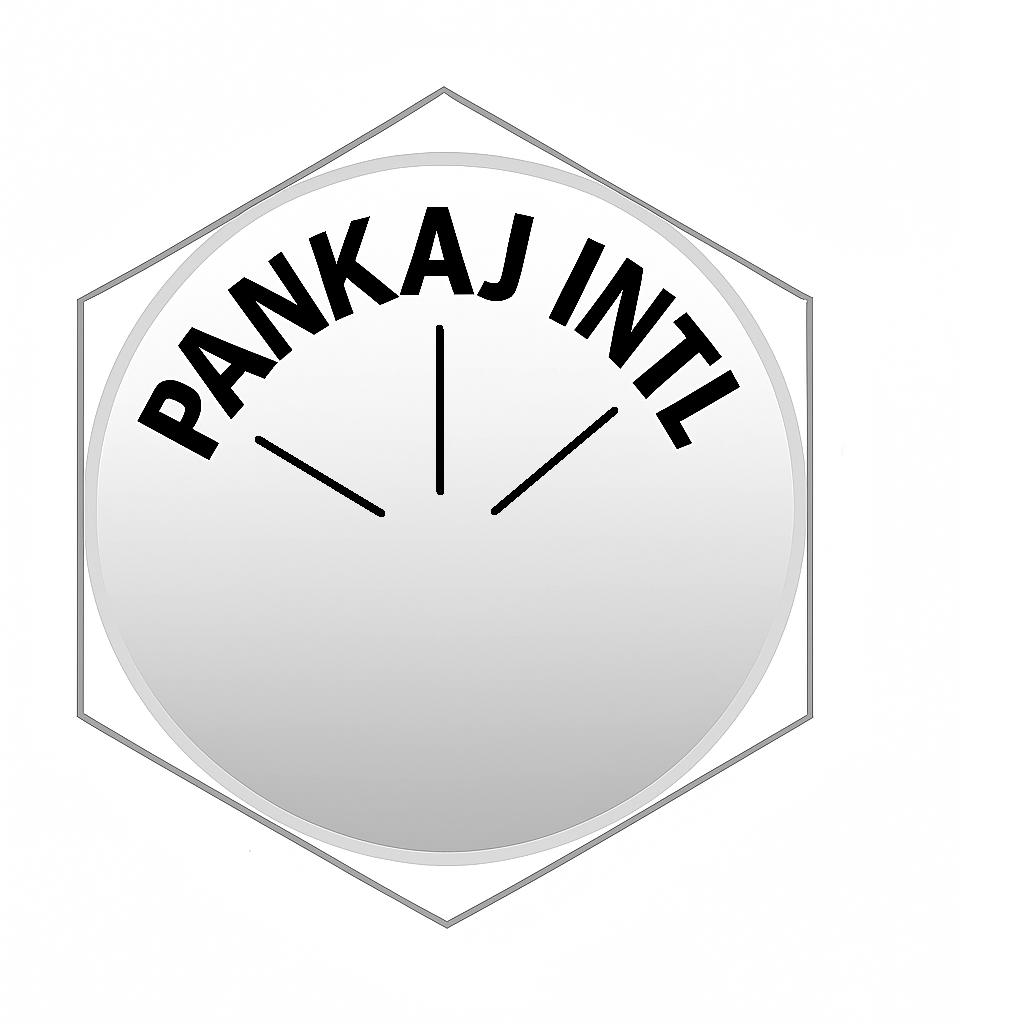

 | Grade 5.2 - SAE J429
Bolts, Screws and Studs | Low carbon Boron steel, quenched and tempered | 1/4" - 1" | 85,000 | 120,000 | 92,000 | C26 / C36 |
 | Grade 8 - SAE J429
Bolts and Screws | Medium carbon / alloy steel with additives, quenched and tempered | 1/4" - 1-1/2" | 120,000 | 150,000 | 130,000 | C33 / C39 |

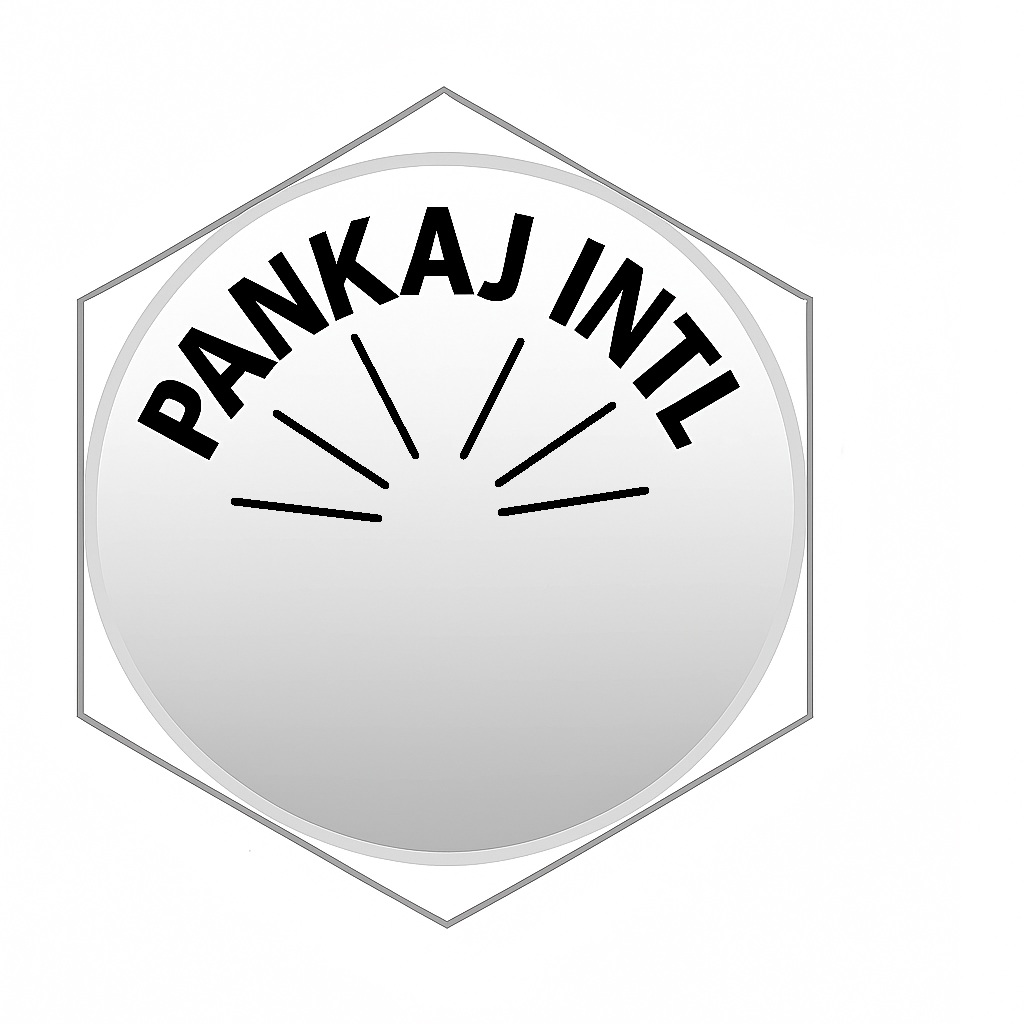

 | Grade 8.2 - SAE J429
Bolts and Screws | Low carbon Boron steel, quenched and tempered | 1/4" - 1" | 120,000 | 150,000 | 130,000 | C33 / C39 |
|
Note: Manufacturer's identification marks are also stamped where applicable. Data as per SAE J429 & ASTM standards.
|
