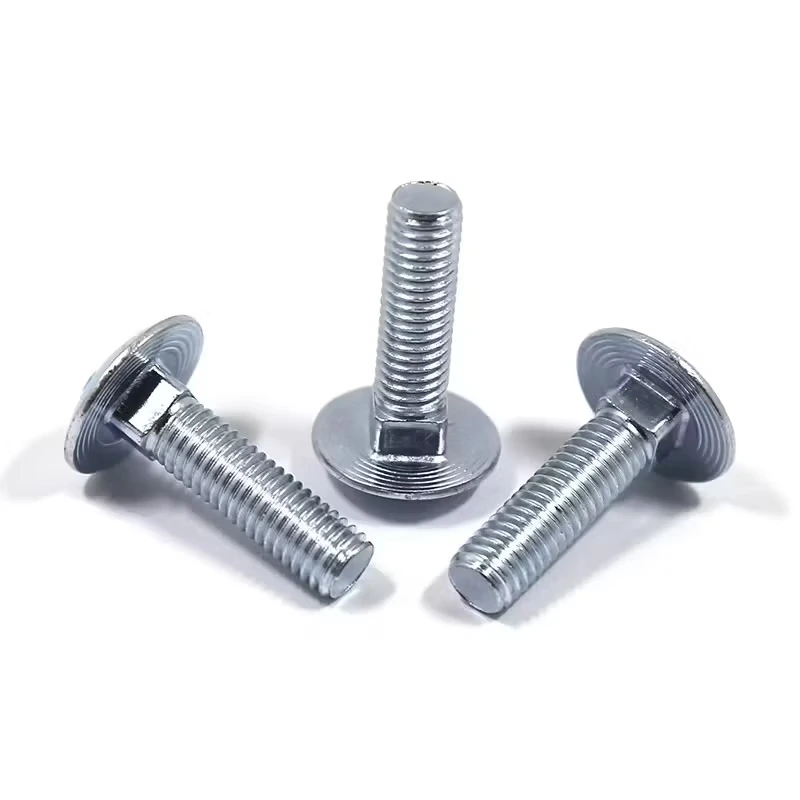

Carriage Bolts: Round Head Short Neck

Round head short neck carriage bolts are designed for secure and clean fastening, especially where space is limited. These bolts feature a smooth, domed head and a shorter square neck than standard carriage bolts, allowing for easy installation in thin or sheet metal without causing obstruction on the nut side.

Commonly used in furniture, sheet metal, machinery, and light construction work, these bolts are ideal when a full-sized square neck would interfere with nearby components.


Size Range
Diameter Metric: M6 to M20
Inch:
Length ---
Technical Specifications

Carriage Bolts: Round Head, Short Neck (ANSI/ASME B18.5)


Nominal Size
(inches)
Basic Bolt Diameter Body Diameter (B) Head Diameter (W) Head Height (H) Square Width (S) Square Depth (N) Corner Radius (C)
MaxMin MaxMin MaxMin MaxMin MaxMin MaxMin
1/4 .2500.260.213.594.563.145.125.260.245.124.093.031.031
5/16 .3125.324.272.719.688.176.156.324.307.124.093.031.031
3/8 .3750.388.329.844.782.208.188.388.368.156.125.047.031
7/16 .4375.452.385.969.907.239.219.452.431.156.125.047.031
1/2 .5000.515.4441.0941.032.270.250.515.492.156.125.047.031
5/8 .6250.642.5591.3441.219.344.313.642.616.218.187.078.062
3/4 .7500.768.6781.5941.469.406.375.768.741.218.187.078.062



Carriage Bolts: Round Head, Short Neck

Tolerance on Length

Nominal Bolt Size Nominal Bolt Length
Up to 1" Over 1" – 2-1/2" Over 2-1/2" – 4" Over 4" – 6" Longer than 6"
No. 10 – 3/8 +.02, -.03 +.02, -.04 +.04, -.06 +.06, -.10 +.10, -.18
7/16 & 1/2 +.02, -.03 +.04, -.05 +.06, -.08 +.08, -.10 +.12, -.18
9/16 – 3/4 +.02, -.03 +.06, -.08 +.08, -.10 +.10, -.10 +.14, -.18
7/8 & 1 +.08, -.10 +.10, -.14 +.12, -.16 +.16, -.20
1-1/8 – 1-1/2 +.12, -.12 +.16, -.16 +.18, -.18 +.22, -.22
