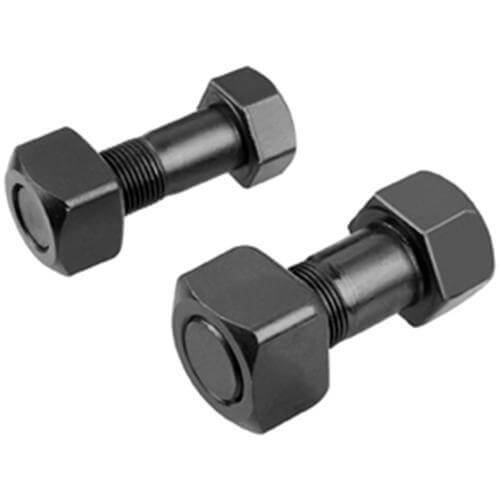

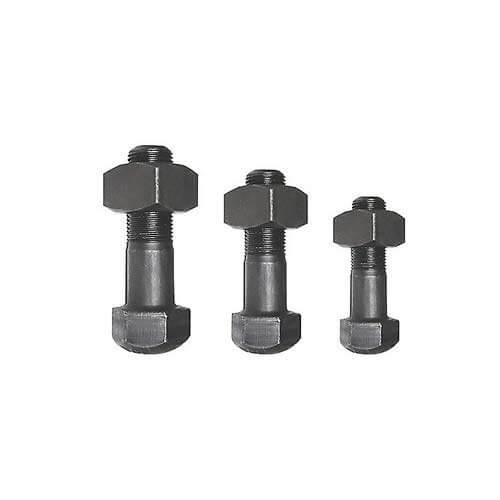

High Tensile Track Shoe bolt

Engineered for superior performance, High Tensile Track Shoe Bolts ensure reliable fastening in heavy machinery applications. Manufactured from high-grade materials, these bolts provide exceptional durability, even under extreme operational conditions. Their high-tensile strength guarantees a secure hold in demanding environments such as construction, mining, and agriculture. Each bolt is designed to meet ISO-certified standards, offering optimal resistance to wear, tear, and corrosion. Ideal for critical applications, these bolts are precision-engineered to deliver reliability and consistency in every installation.


Size Range
Diameter Metric: M16 to M42
Inch: 5/16" to 2"
Length Metric: 20 mm to 200 mm
Inch: 1" to 8"
Technical Specifications



Bolt Size
w c h d Tl l
M16x1.5 23.0 26.6 16.00 21.60 28.0 57.0
M18x1.5 27.0 31.2 16.50 26.60 30.0 58.0
M19x1.5 29.0 33.5 19.00 28.00 35.0 62.0
M19x1.5 29.0 33.5 19.00 28.00 35.0 65.0
M20x1.5 30.0 34.6 19.00 29.00 32.0 63.0
M24x1.5 36.0 41.6 22.00 35.00 36.0 78.5
M27x1.5 41.0 47.3 24.00 40.00 38.0 82.5
5/8"-18UNF 23.8 26.9 16.66 23.00 28.6 51.0
5/8"-18UNF 23.8 26.9 16.66 23.00 30.6 56.0
3/4"-16 UNF 28.6 32.3 19.05 27.56 27.0 60.3
3/4"-16 UNF 28.6 32.3 19.50 27.56 30.0 70.0
7/8"-14 UNF 33.3 37.0 20.60 32.15 31.8 67.6
7/8"-14 UNF 33.3 37.0 19.90 32.15 35.0 84.0
1"-14 UNS 38.1 43.0 22.86 37.20 31.5 74.7


Tensile Strength Size Range Equivalent Standards
Property Class Diameter Length
PSI N/mm2 Grade Metric Inch Metric Inch -
60000 to 174000 400 to 1200 4.6 to 12.9 M16 to M27 0.6“ to 1-14" 20 mm to 200 mm 1" to 8" -


1. Introduction to High Tensile Track Shoe Bolts


High tensile track shoe bolts are crucial components designed to secure track shoes in heavy machinery like excavators, bulldozers, and construction vehicles. These bolts are engineered to handle extreme stress and maintain durability in demanding environments. Manufactured from premium-grade steel, their high tensile strength ensures they remain intact even under intense load and vibration. The track shoe bolts are designed for a precise fit, minimizing wear and tear during prolonged operations. With a combination of advanced engineering and strict quality standards, these bolts deliver exceptional performance in various terrains and conditions. Their application extends across industries like construction, mining, and agriculture, where reliability is paramount.


2. Material and Manufacturing Standards


High tensile track shoe bolts are crafted using high-grade alloy or carbon steel, adhering to international standards such as DIN, ISO, and ASTM. These materials are selected for their ability to withstand high stress, ensuring long-lasting performance. The bolts undergo stringent heat treatment processes to enhance their tensile strength and hardness, making them suitable for heavy-duty applications. Precision engineering ensures dimensional accuracy, while surface treatments like zinc or galvanized coatings protect against rust and corrosion. Adherence to quality assurance protocols during production ensures every bolt meets or exceeds customer expectations.


3. Key Features of Track Shoe Bolts


Track shoe bolts are distinguished by their unique features, including high tensile strength, corrosion resistance, and enhanced load-bearing capacity. They are designed with a specific thread pattern to ensure a secure fit with track shoe assemblies. These bolts also feature a uniform hardness profile, preventing deformation during installation or operation. Anti-loosening properties are incorporated to handle vibrations and shocks in heavy machinery. Additionally, the bolts are available in different sizes and finishes, catering to various industry requirements. Their adaptability makes them a versatile choice for multiple applications.


4. Applications in Heavy Machinery


High tensile track shoe bolts play a vital role in securing track shoes to the undercarriage of heavy equipment. They are widely used in excavators, bulldozers, loaders, and other track-based machinery. In the mining sector, these bolts ensure stability and functionality, even in abrasive conditions. Similarly, in construction, they provide the necessary strength to handle heavy loads and rough terrains. Agricultural equipment also benefits from their reliability, ensuring uninterrupted operation during intensive tasks. Their ability to perform consistently in diverse environments makes them indispensable in industries requiring robust solutions.


5. Advantages of Using High Tensile Track Shoe Bolts


These bolts offer several advantages, such as superior durability, reduced maintenance costs, and extended service life. Their high tensile strength ensures they can withstand heavy loads without breaking or deforming. Corrosion resistance minimizes wear caused by moisture, chemicals, or extreme temperatures, increasing reliability in challenging conditions. The precision-engineered threads provide a tight, secure fit, reducing the risk of loosening during operation. Furthermore, their compatibility with various coatings and finishes enhances their adaptability to specific industry requirements. These benefits make high tensile track shoe bolts a cost-effective and reliable solution.


6. Importance of Proper Installation and Maintenance


Proper installation of track shoe bolts is crucial for maximizing their performance and lifespan. Ensuring correct torque levels prevents over-tightening or under-tightening, which could lead to failure during operation. Routine inspection and maintenance help identify potential issues like wear or loosening, allowing for timely replacement. Using compatible tools, such as allen wrenches or hex keys, ensures precision during installation. Additionally, applying anti-seize compounds can facilitate easier removal during servicing. Regular upkeep ensures these bolts deliver consistent performance, reducing downtime and enhancing productivity in heavy machinery operations.


7. Why Choose Us for High Tensile Track Shoe Bolts?


We specialize in manufacturing high tensile track shoe bolts that meet the highest industry standards. Our products are crafted using state-of-the-art technology and undergo rigorous quality checks to ensure unmatched performance. With a commitment to excellence, we offer a diverse range of sizes, coatings, and finishes to cater to various industrial needs. Our expertise lies in providing customized solutions that align with specific customer requirements. Choose our high tensile track shoe bolts for their reliability, durability, and ability to deliver optimal performance in demanding applications. Contact us today to discuss your requirements or place an order.
